Research · Rare events in 14 to 2055 dimensions

Accelerated Atomistic Simulations

Overdamped Langevin dynamics, guided by a neural-network committor, with path weights that correct its error.

Michael M. Kim and Wei Cai · Department of Mechanical Engineering, Stanford University · Posted preprint (PDF) · ChemRxiv

Explore
Illustration: vacancies wandering through a lattice. Most attempted jumps fall back; a few succeed.

The idea

Bias the dynamics, keep the kinetics

Atoms spend almost all of their time rattling inside energy basins, yet the rare escapes between basins decide how a material evolves. Brute-force simulation has to wait for every one of them. Instead, each step is pushed toward the target state, and every path is then reweighted so that the original rates are recovered.

  1. Learn

    A graph neural network reads interatomic distances and learns an importance function, I, that approximates the committor. No collective variable or reaction coordinate goes in.

  2. Bias

    The network tilts every overdamped Langevin step toward the product state, so rare transitions are sampled often.

  3. Reweight

    A known factor, I at the start of the path over I at its end, undoes the tilt. Path weights built from Monte Carlo normalization factors absorb the network’s error, so an imperfect network costs variance, not bias.

Benchmark In the posted preprint

Seven Lennard-Jones discs

  • d = 14
  • 7 discs in 2D
  • 4 competing modes
  • 600 K, fine-tuned down to 300 K

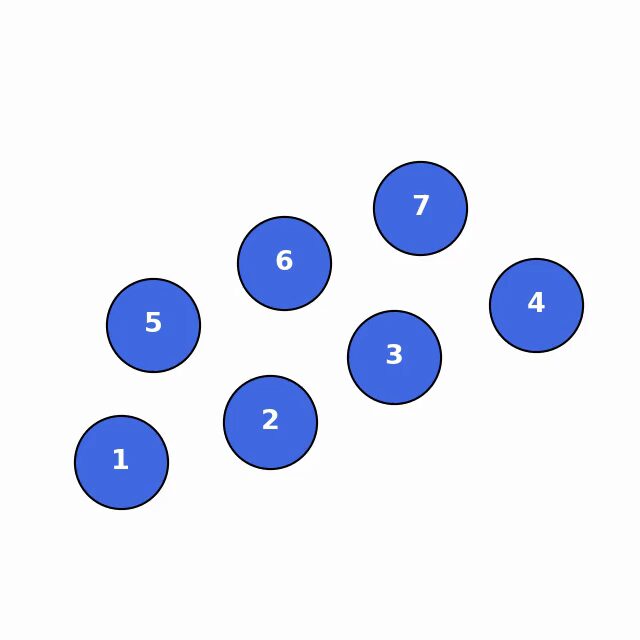

Seven numbered discs in the C3 arrangement at the start of one accelerated transition path Animation of the LJ7 cluster from our simulations Accelerated path · C3 → C2Animation
One transition path from our simulations, generated by the accelerated dynamics during adaptive training (not one of the production runs reported in the paper): the cluster leaves C3 and reaches the C2 arrangement as discs 4 and 7 slide up along the edge of discs 3 and 6 (mode M2). LJ7: an animation from our simulations.

The rare event

Seven discs with a soft-core Lennard-Jones interaction start in the C3 arrangement and rearrange into C2 by four competing modes: in M1 and M2 a pair of discs slides, in M3 and M4 a triplet. The barriers, 0.49 and 0.52 eV, are about 10 kBT at 600 K, so each transition is a rare event.

What we found

At 600 K the importance-sampled rate is in excellent agreement with brute force, and the split between modes comes out right. Treating the network as the exact committor instead gives a rate about 40% too low, and counting paths without their weights predicts the wrong trend. Fine-tuned down to 300 K, where brute force cannot collect enough transitions, the rates track Kramers theory, to within about 1% at 300 K.

  • 4 modesresolved with their correct shares
  • ≈40%committor-only rate too low at 600 K
  • ≈1%from Kramers theory at 300 K

Why it matters

LJ7 is the proving ground: small enough that every number can be checked against brute-force Langevin dynamics or Kramers rate theory before moving on to the materials.

Four ways out of C3

Share of the total rate at 600 K for each mode.

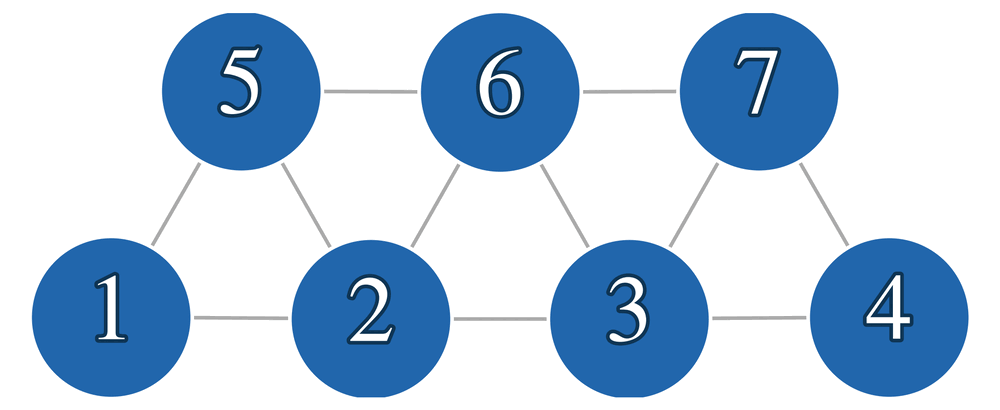

  • C3 state: discs 1 to 4 in a bottom row and discs 5 to 7 above, joined by nearest-neighbor lines

    StartC3

    Seven discs, labeled 1 to 7; gray lines join nearest neighbors. Every mode below ends in a C2 state.

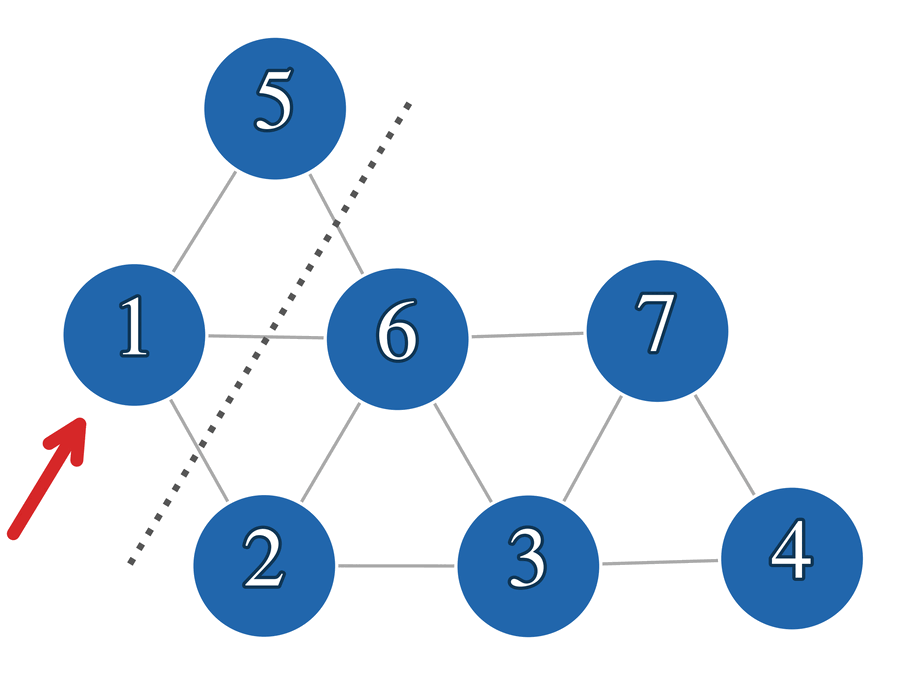

  • C2 state reached by mode M1: discs 1 and 5, set off from the rest by a dotted line, have slid up along the edge of discs 2 and 6 (red arrow)

    M1 · pair slideDiscs 1 and 5 slide up

    Along the edge of discs 2 and 6. Barrier 0.49 eV.

    0.3178 · brute force 0.3192 · unweighted 0.2273

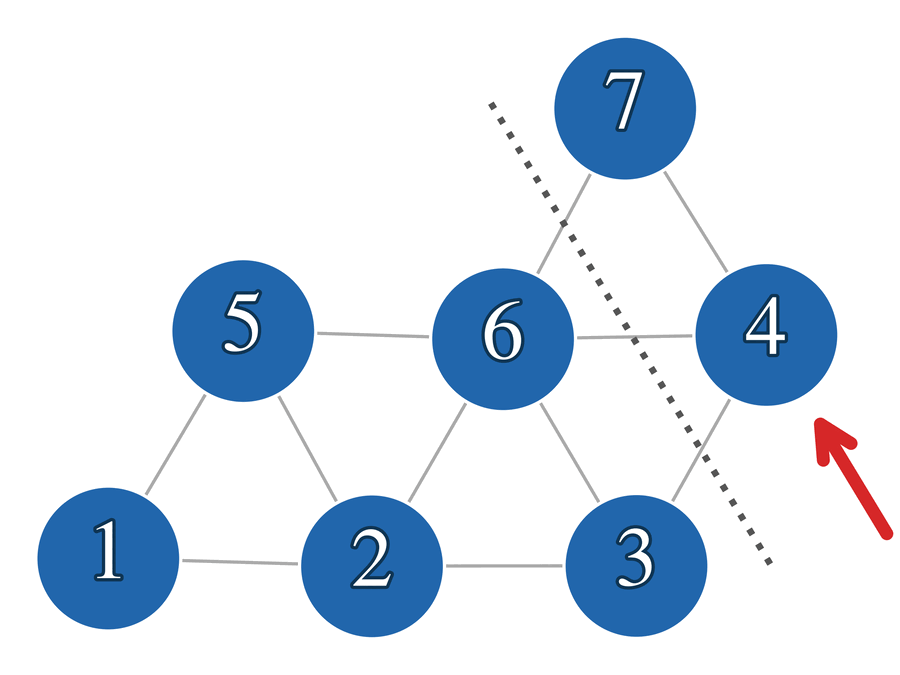

  • C2 state reached by mode M2: discs 4 and 7, set off from the rest by a dotted line, have slid up along the edge of discs 3 and 6 (red arrow)

    M2 · mirror of M1Discs 4 and 7 slide up

    Along the edge of discs 3 and 6. Barrier 0.49 eV.

    0.3213 · brute force 0.3170 · unweighted 0.2263

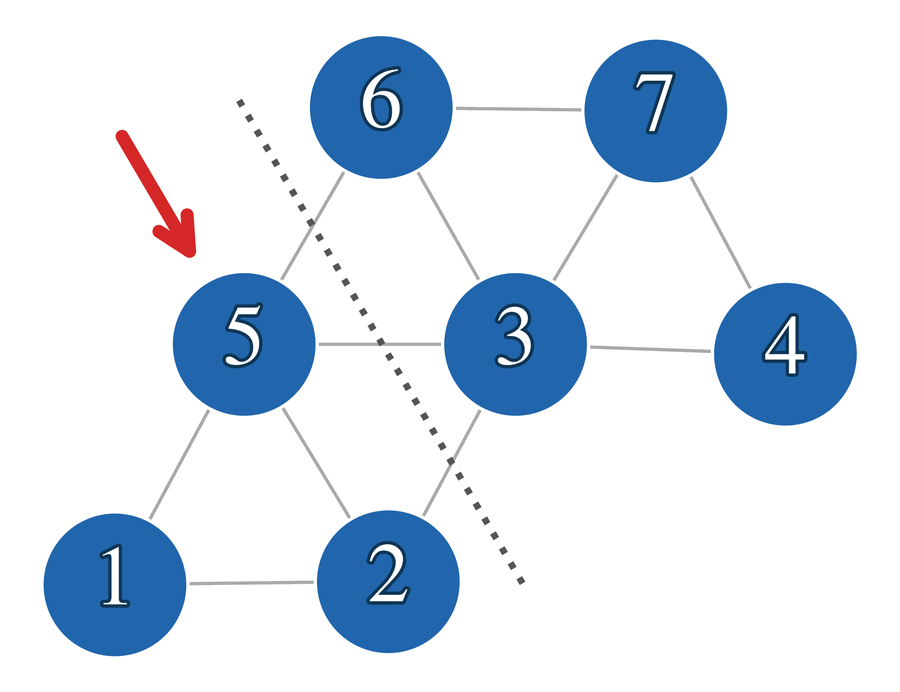

  • C2 state reached by mode M3: discs 1, 2 and 5, set off from the rest by a dotted line, have slid down along the edge of discs 3 and 6 (red arrow)

    M3 · triplet slideDiscs 1, 2 and 5 slide down

    Along the edge of discs 3 and 6. Barrier 0.52 eV.

    0.1811 · brute force 0.1838 · unweighted 0.2736

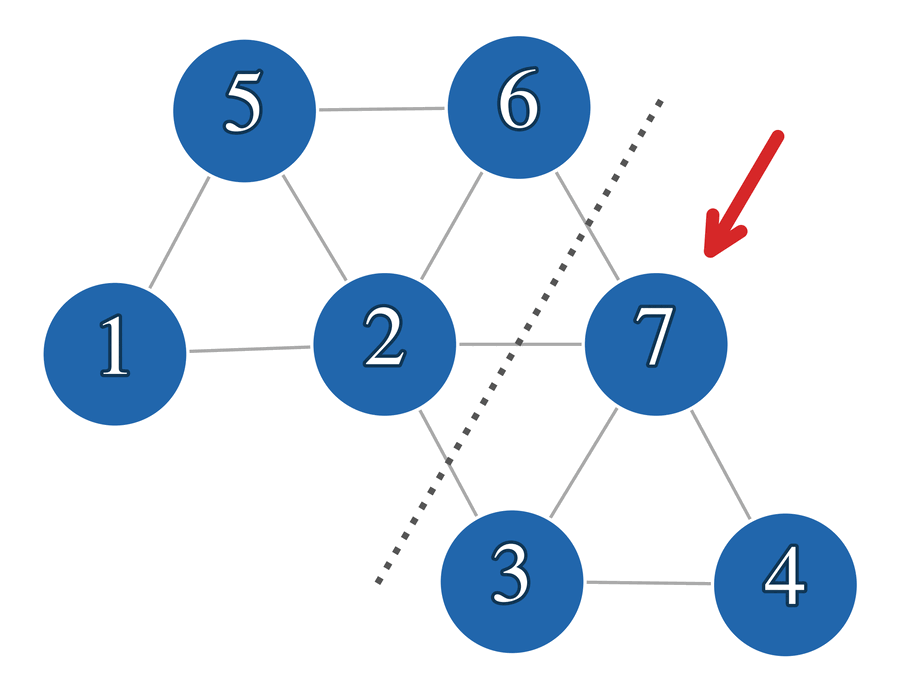

  • C2 state reached by mode M4: discs 3, 4 and 7, set off from the rest by a dotted line, have slid down along the edge of discs 2 and 6 (red arrow)

    M4 · mirror of M3Discs 3, 4 and 7 slide down

    Along the edge of discs 2 and 6. Barrier 0.52 eV.

    0.1797 · brute force 0.1795 · unweighted 0.2721

Counted without their path weights (dashed ticks), the same sampled paths would wrongly put the triplet slides ahead of the pair slides.

Surface diffusion Revised manuscript in preparation

A platinum adatom on Pt(001)

  • d = 387
  • 129 mobile atoms, EAM
  • 64 adatom sites
  • 1000 K, reused at 900 to 700 K

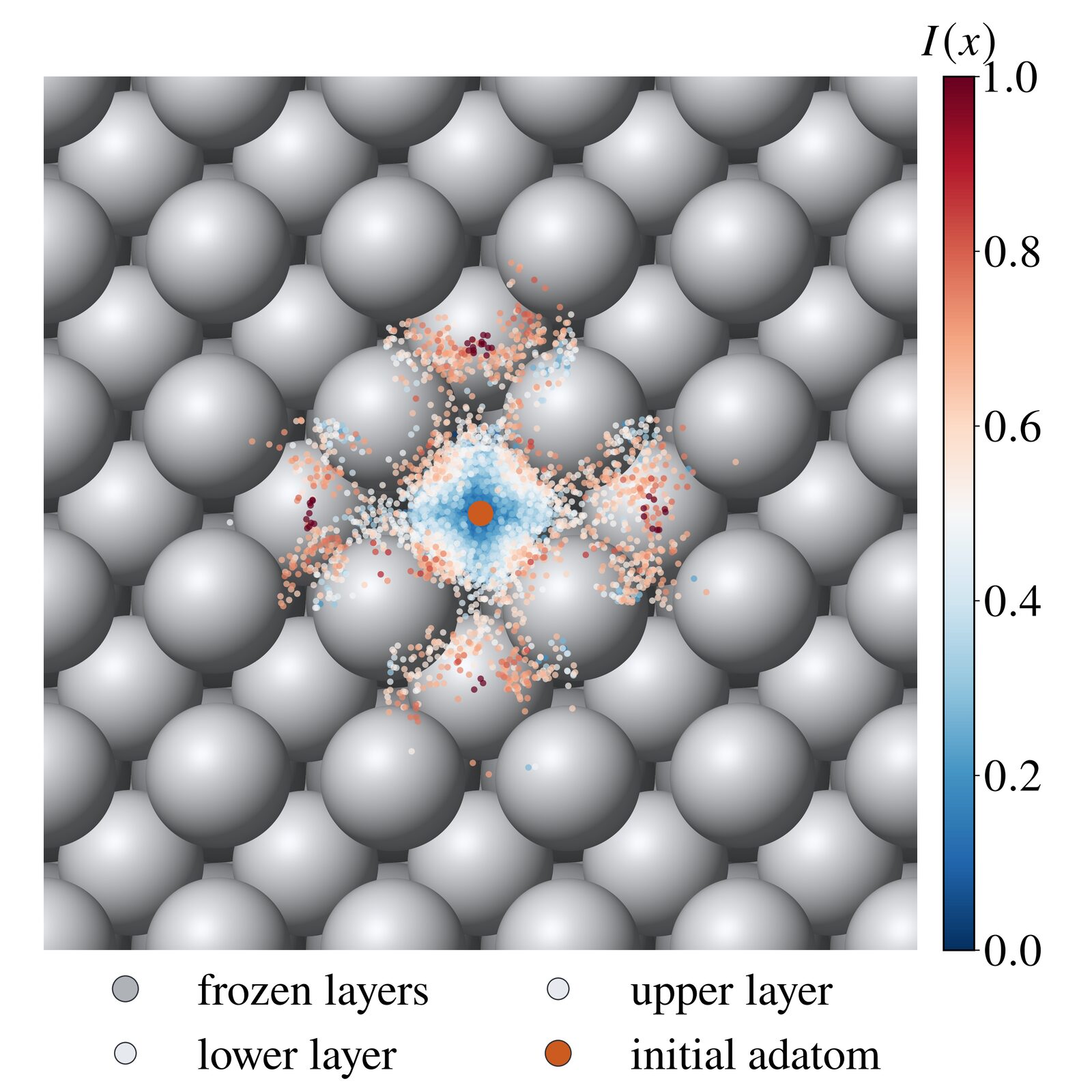

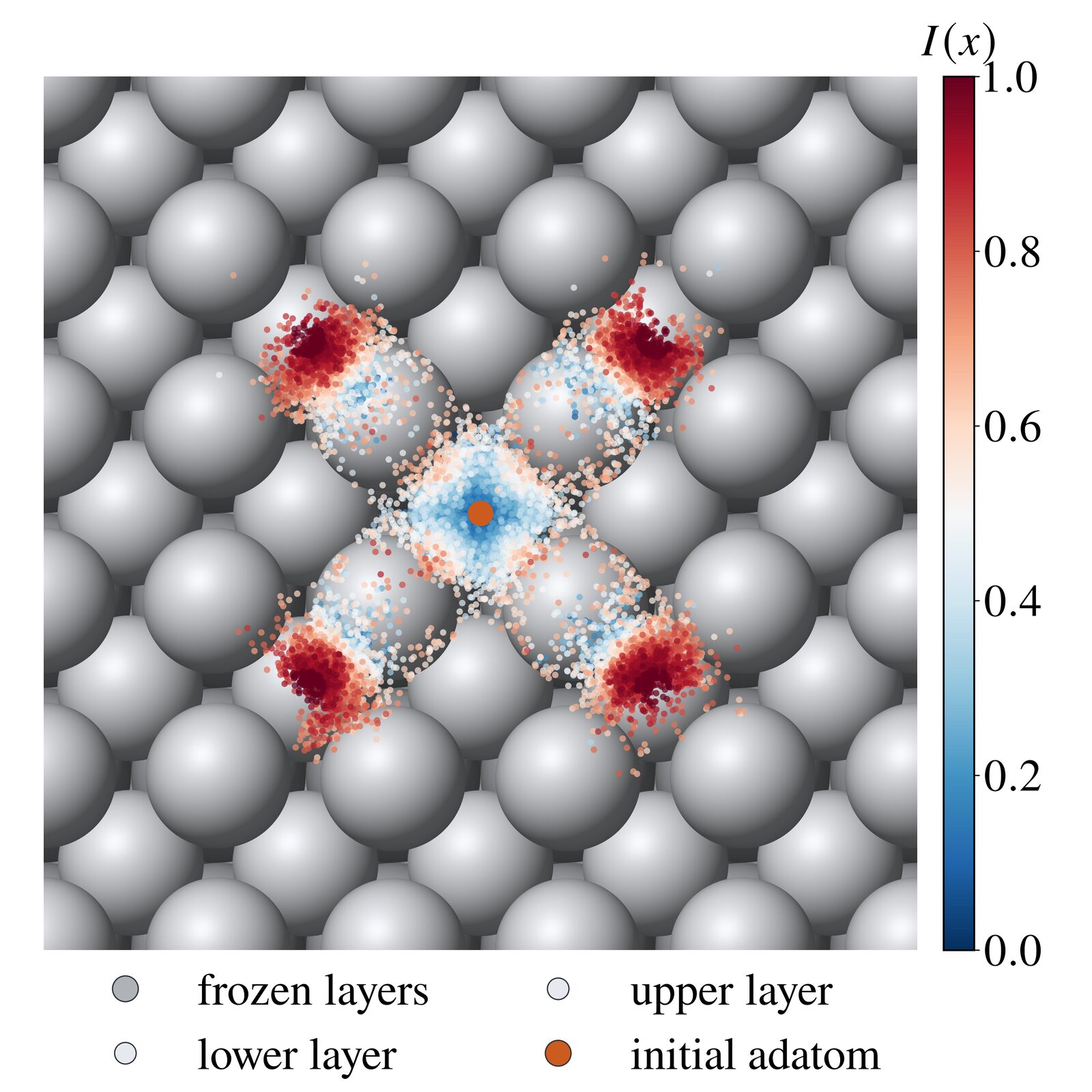

Top view of the Pt(001) surface with four clouds of sampled configurations reaching from the adatom toward the four diagonal sites, colored blue to red by the learned importance function Animation of Pt adatom diffusion on Pt(001) from our simulations Sampled paths, colored by IAnimation
Configurations along accelerated transition paths that end on the four diagonal sites at 1000 K, seen from above and colored by the learned importance function I, from blue (0) through white (1/2) to red (1). The orange dot marks the initial adatom position. Pt adatom on Pt(001): an animation from our simulations.

The rare event

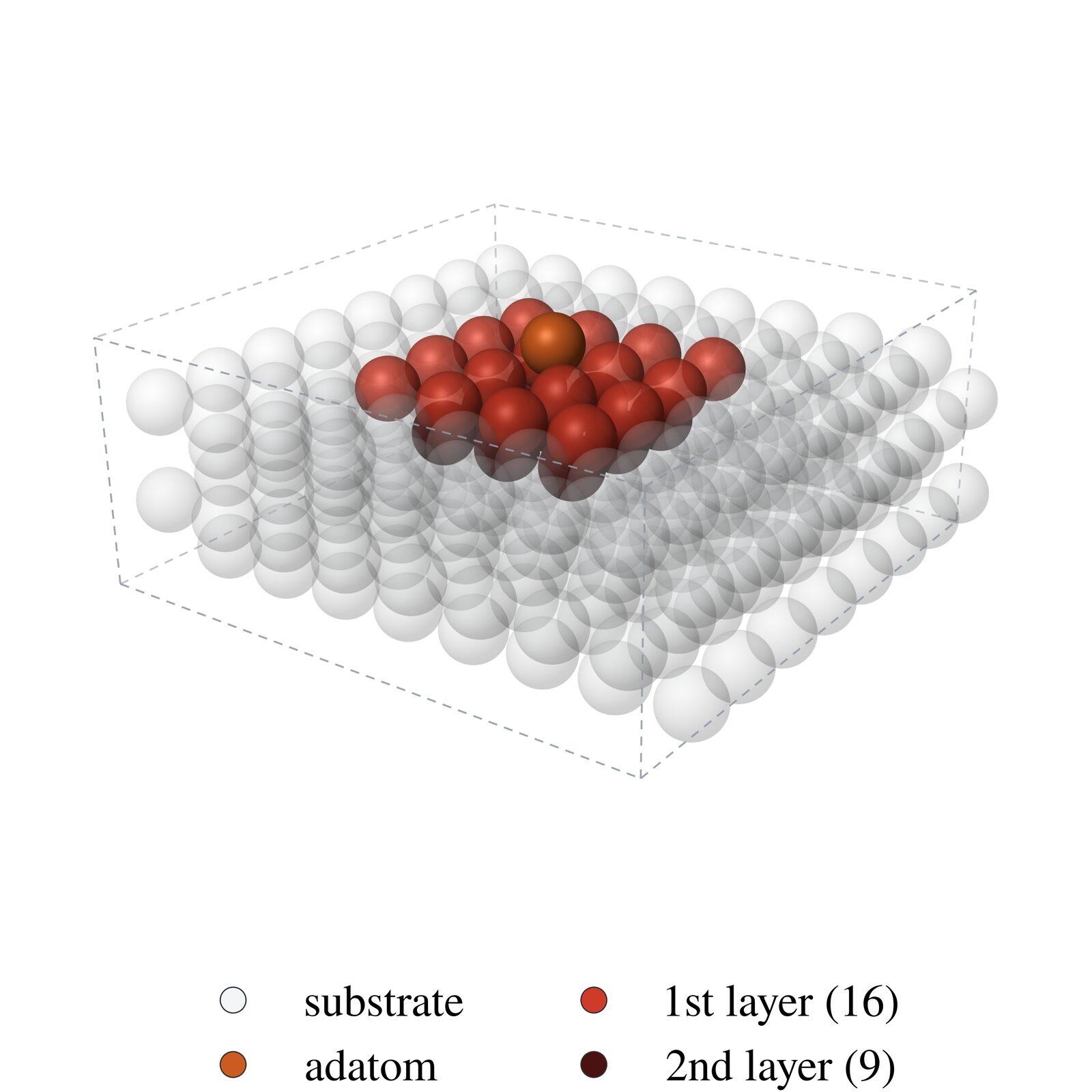

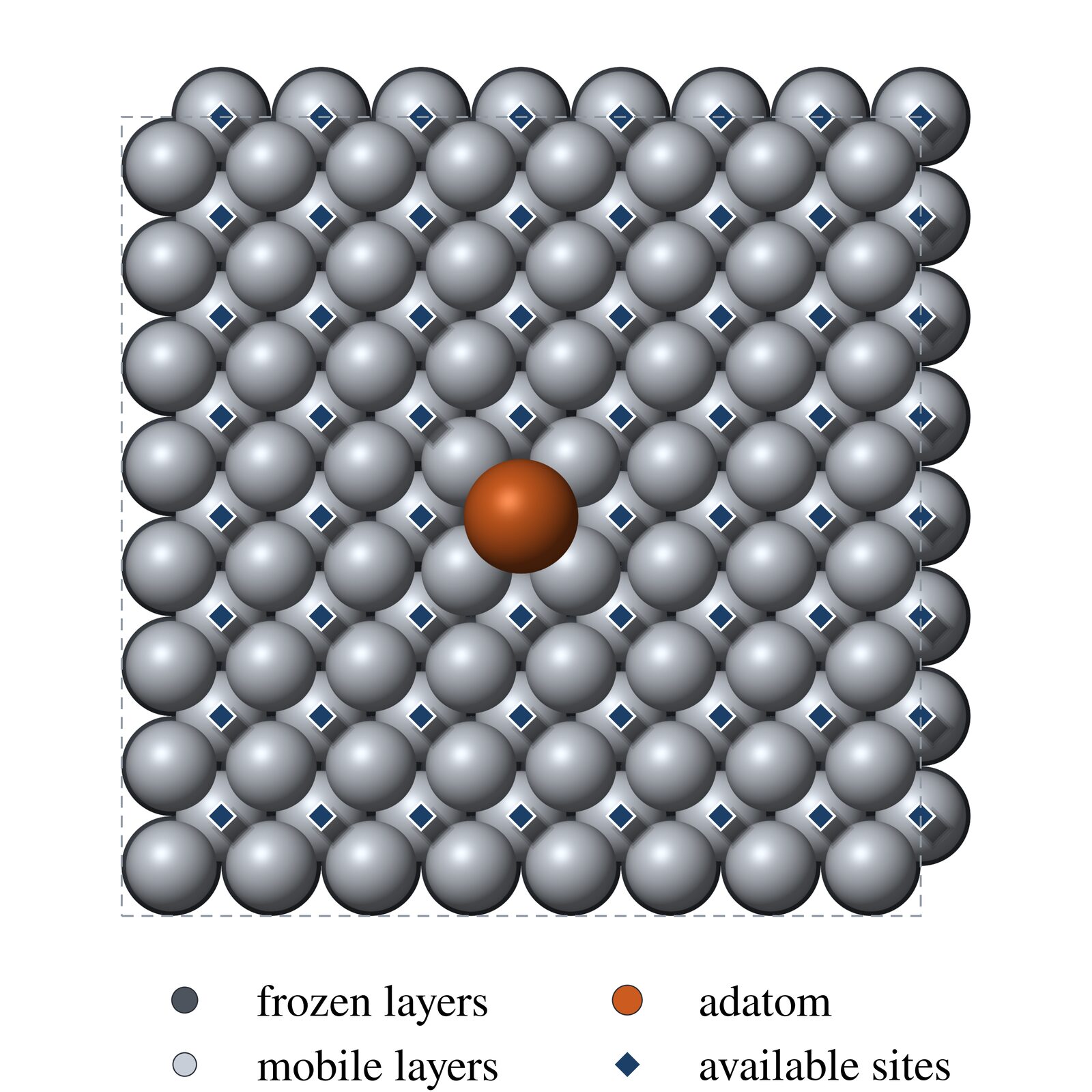

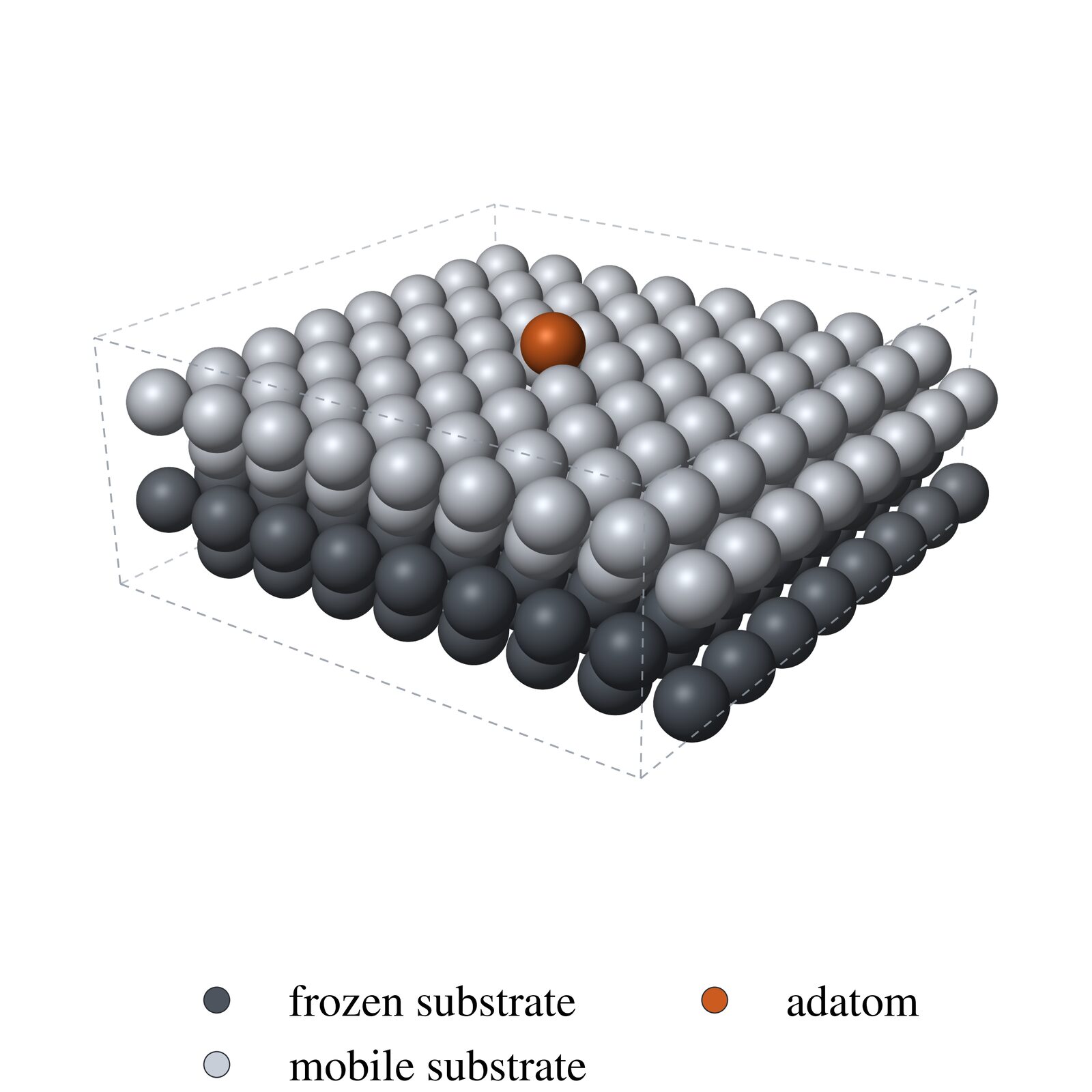

A single Pt adatom sits on a Pt(001) slab: 129 mobile atoms above two frozen layers, with an embedded-atom potential. It diffuses among 64 adatom sites, mostly by exchange, taking the place of a top-layer atom that is ejected onto a neighboring site. The target is any of the 63 empty sites, so it favors no mechanism.

What we found

At 1000 K the rate falls inside the brute-force 95% confidence interval, while the committor-only estimate is more than a factor of two too low. The paths also turned up a channel the study was not set up for: a long jump of two sites, carrying about 9% of the rate, which brute force confirms. Reused without retraining down to 700 K, the rates stay within 4% of the brute-force intervals through a more than sevenfold drop.

  • 12 modeseach within 0.007 of brute force
  • 9.3%long-jump share of the rate (brute force 8.9%)
  • >2×committor-only rate too low at 1000 K

Why it matters

Adatom diffusion is an elementary step of mass transport with several competing mechanisms; exchange onto a diagonal site is the established self-diffusion mechanism of Pt on Pt(001).

Three channels, twelve modes

Share of the total rate at 1000 K for each channel. Barriers from minimum-energy paths.

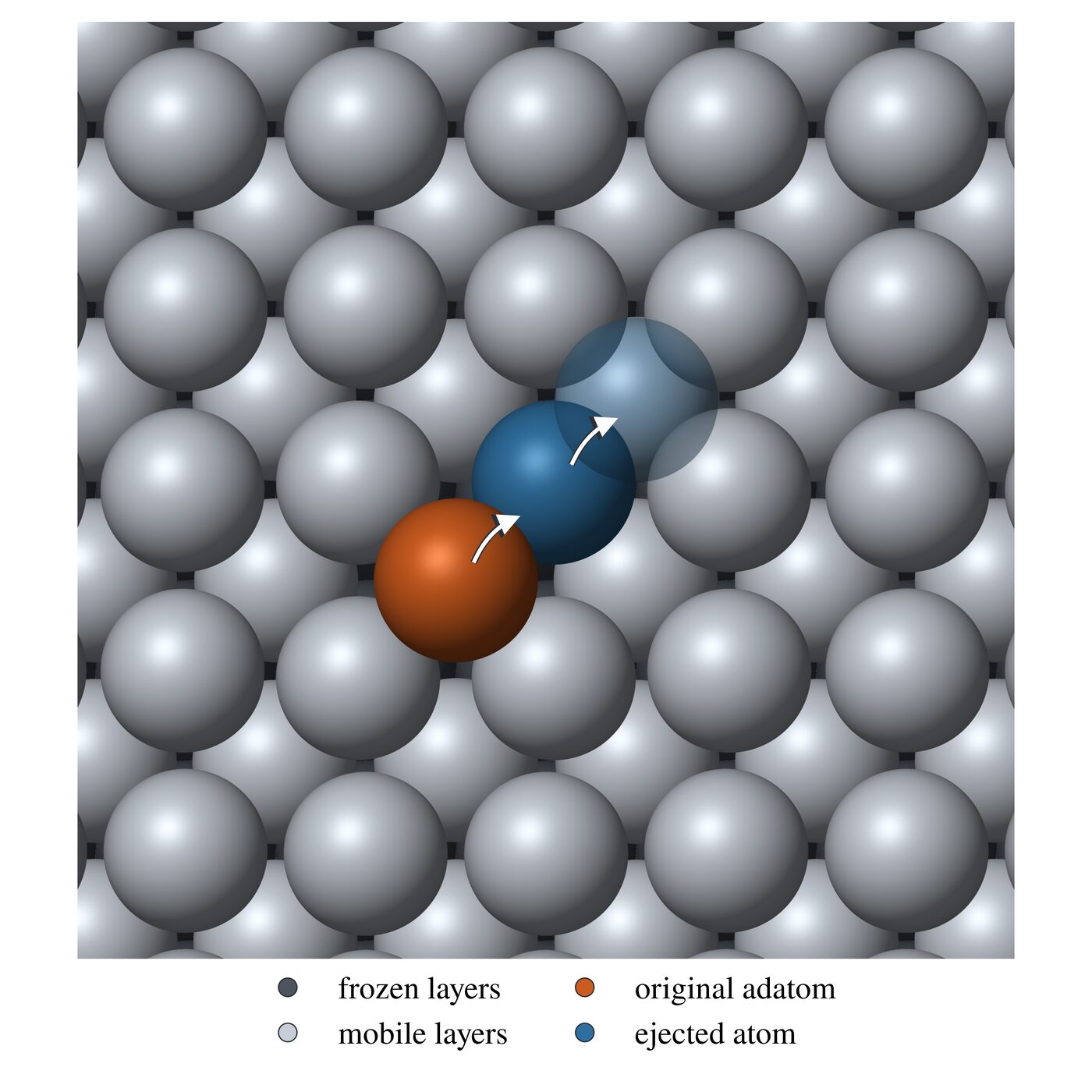

  • Orange adatom and blue ejected atom on the gray surface, with arrows toward a diagonal site

    Diagonal · by exchangeSwap onto a diagonal site

    The adatom takes the place of a top-layer atom, which is ejected onto a diagonal site. Barrier 0.38 eV.

    0.7142 · brute force 0.7166 · unweighted 0.8245

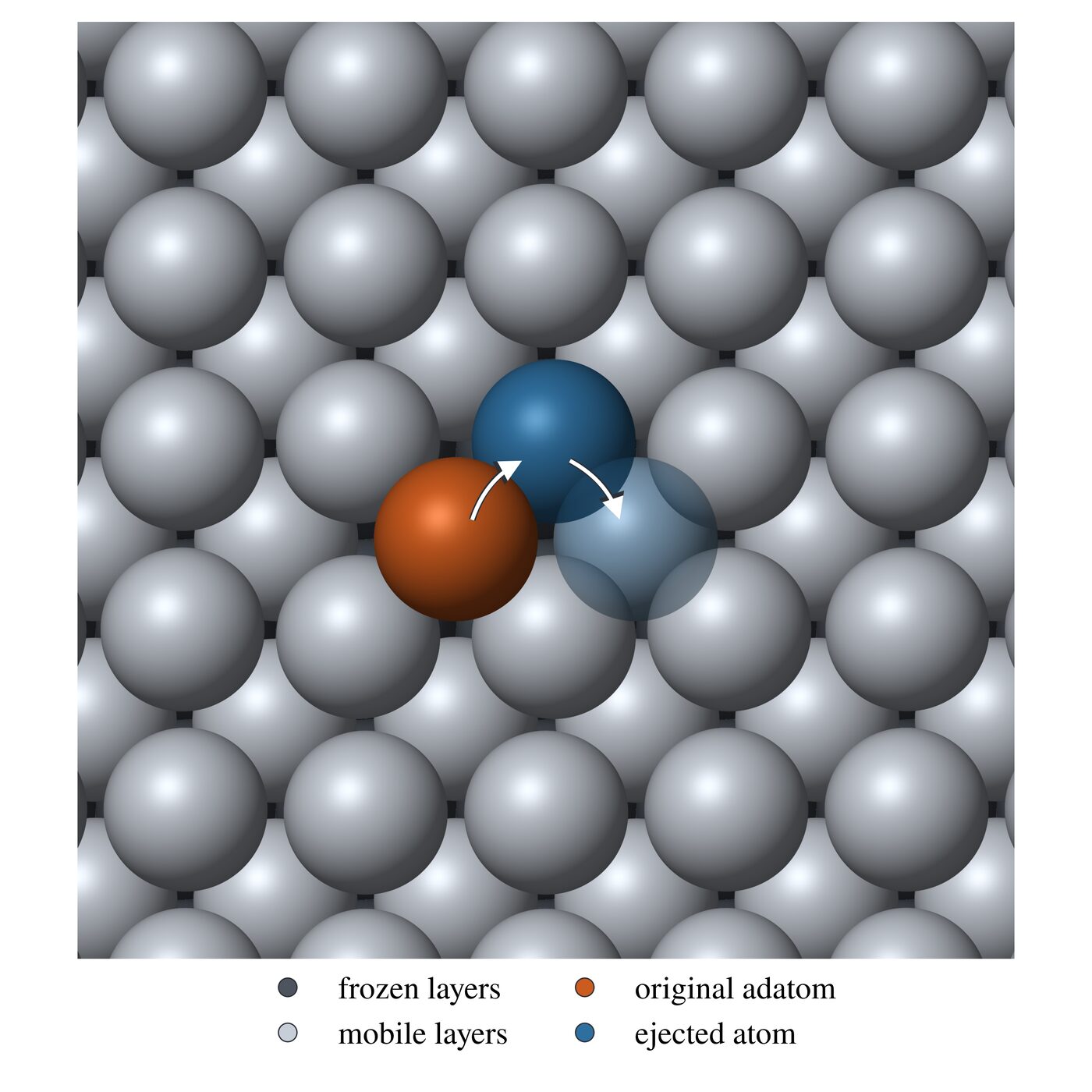

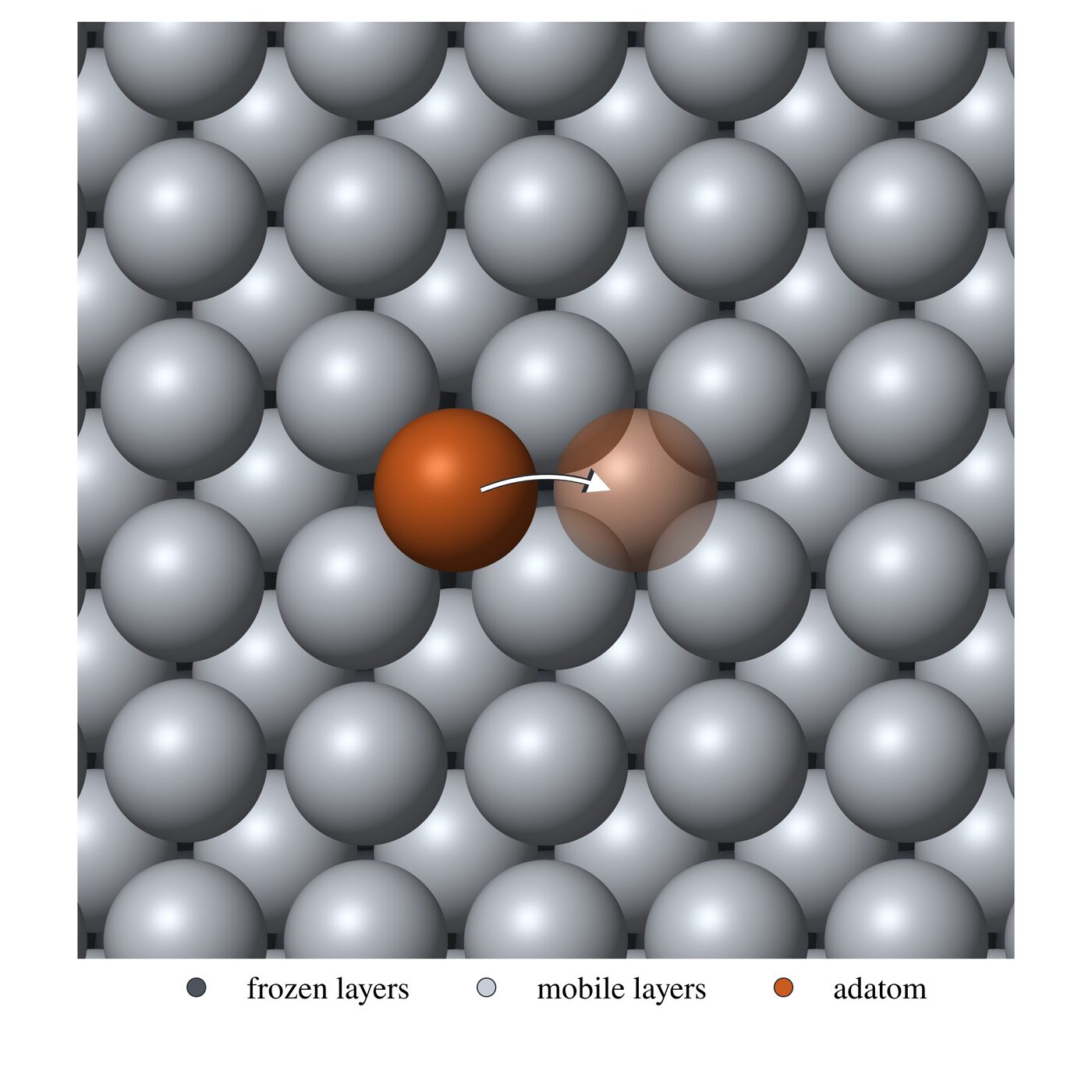

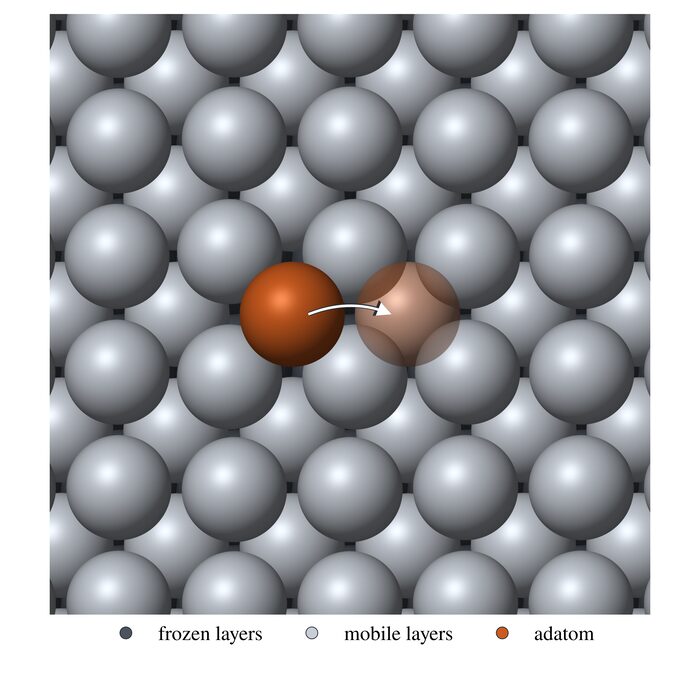

  • Orange adatom and blue ejected atom, with arrows toward a nearest-neighbor site Exchange Orange adatom with an arrow to a translucent copy on the neighboring site Hop

    Crucifix · by exchange or by hoppingOnto a nearest-neighbor site

    Exchange: the ejected atom lands on a nearest-neighbor site. Barrier 0.80 eV.

    Hop: the adatom itself moves over. Barrier 1.07 eV.

    0.1140 (both routes together) · brute force 0.1142 · unweighted 0.0719

  • Unanticipated

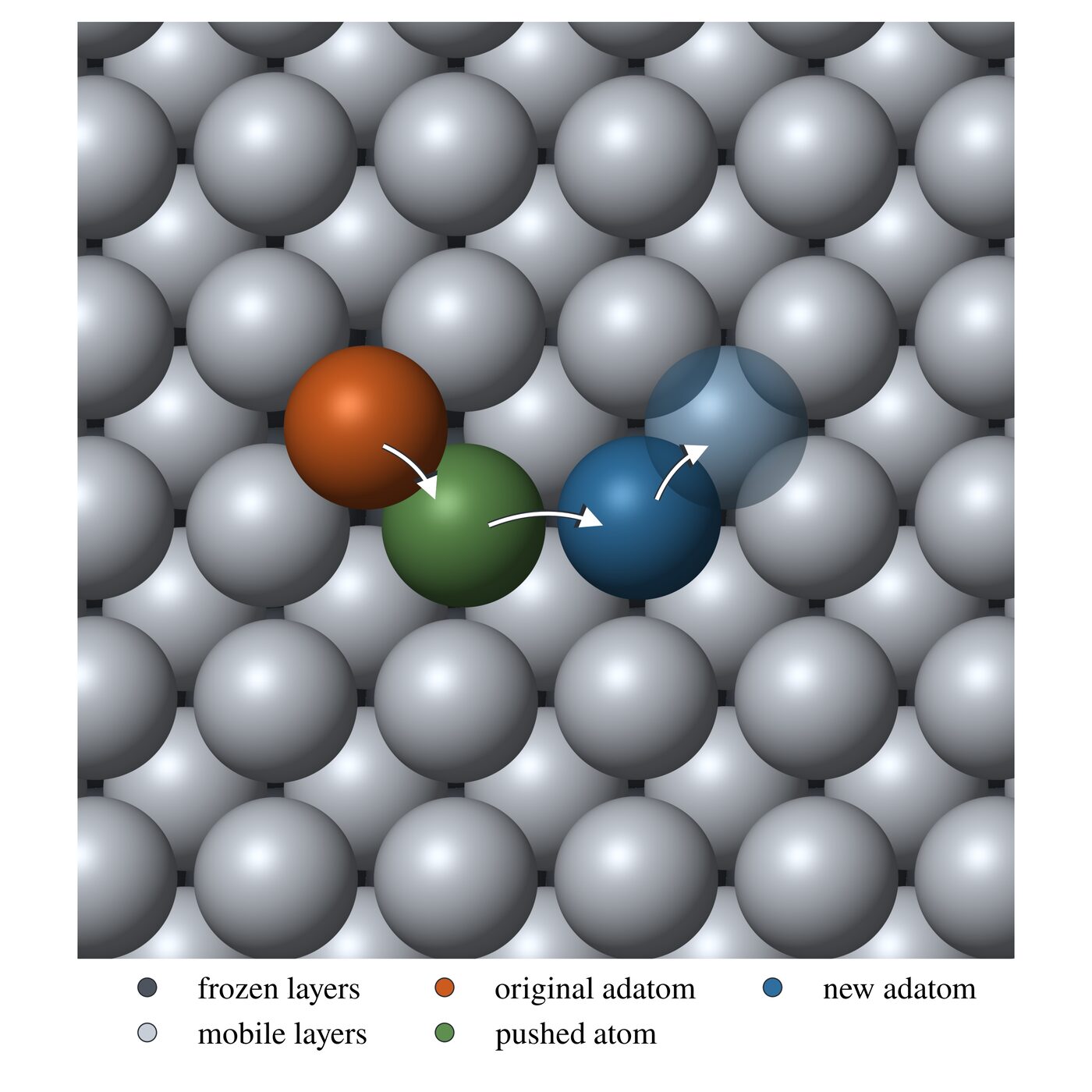

    Orange adatom pushing a green atom, which pushes a blue atom up two sites away

    Long jumpA new adatom two sites away

    The adatom sinks in and pushes a neighbor, which pushes the next atom up onto the surface.

    0.0930 · brute force 0.0891 · unweighted 0.0520

The other 51 sites share the remaining 8% of the rate. Without the weights, the diagonal-to-crucifix ratio comes out 11.4641 instead of 6.2665 (brute force 6.2750).

Bulk diffusion Revised manuscript in preparation

A vacancy in bcc iron

  • d = 2055
  • 685 atoms, none fixed
  • Fully periodic, EAM
  • 800 K, reused at 700 to 500 K

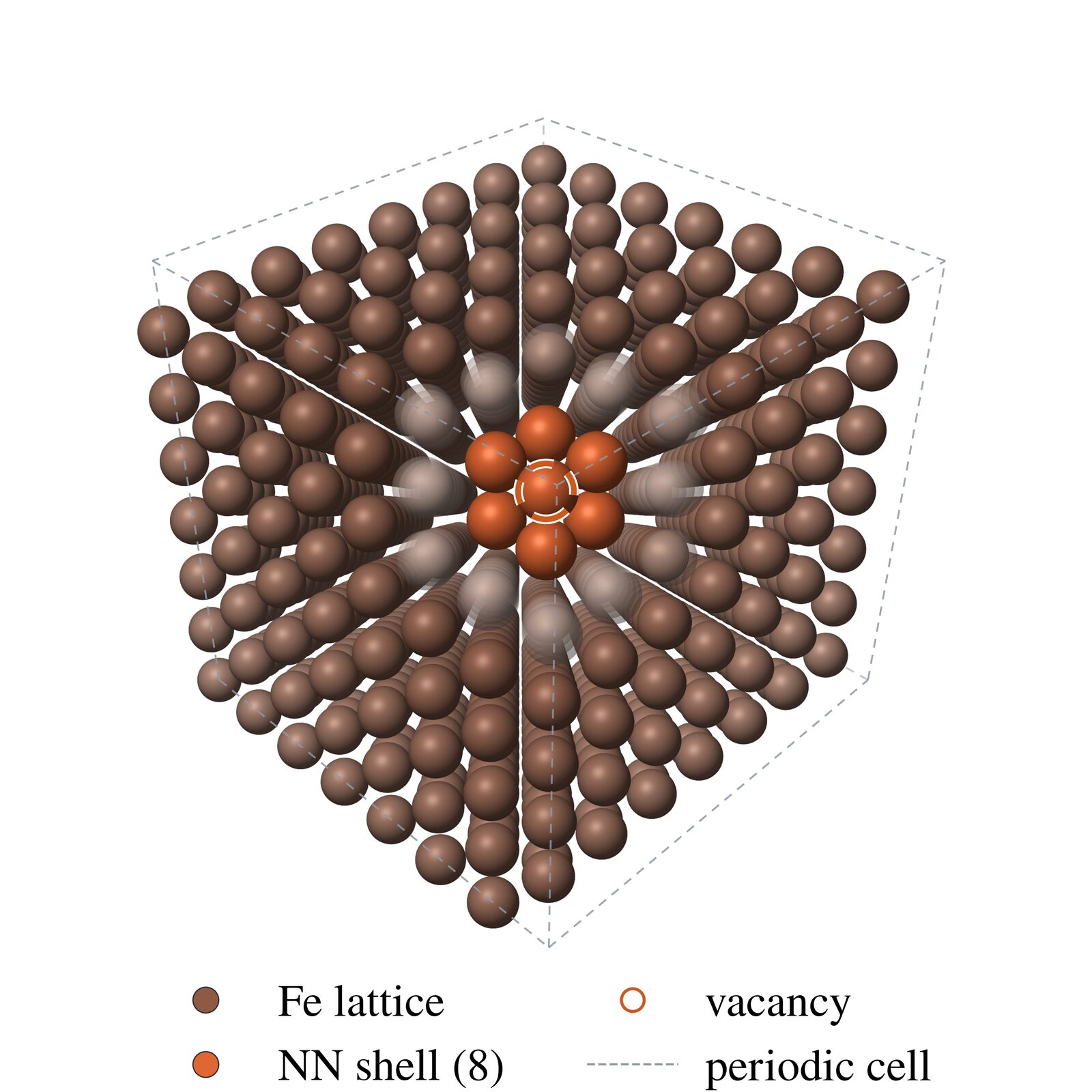

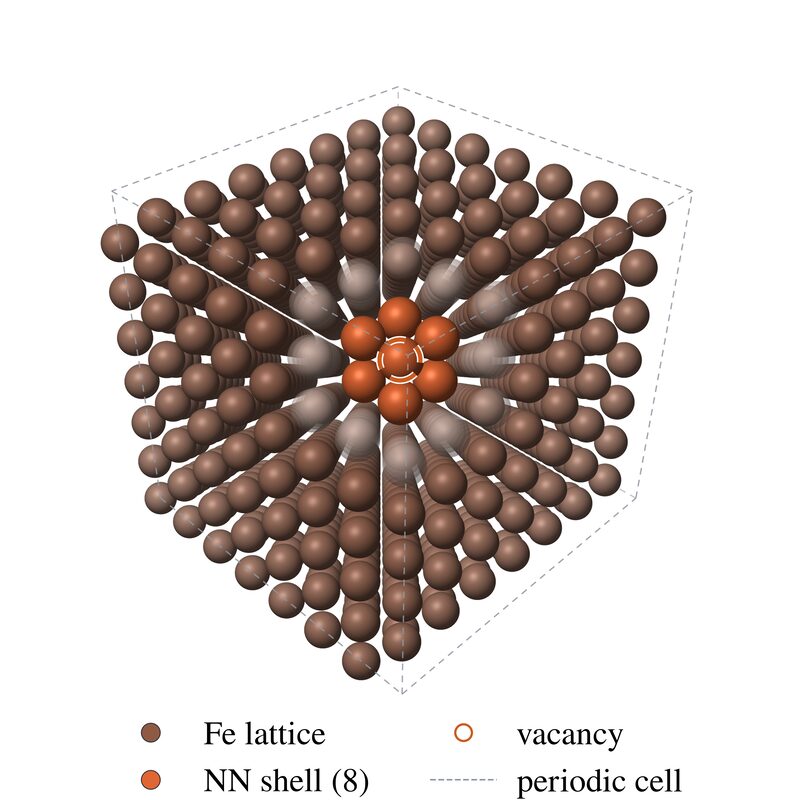

Cube of brown Fe atoms with the vacant site at the center, marked by an open circle and surrounded by eight orange neighbors Animation of vacancy migration in bcc iron from our simulations 685 atoms, all mobileAnimation
The periodic bcc Fe supercell: 685 atoms around one vacant site (open circle), whose eight nearest neighbors are shown in orange. The dashed box is the periodic cell. Vacancy in bcc iron: an animation from our simulations.

The rare event

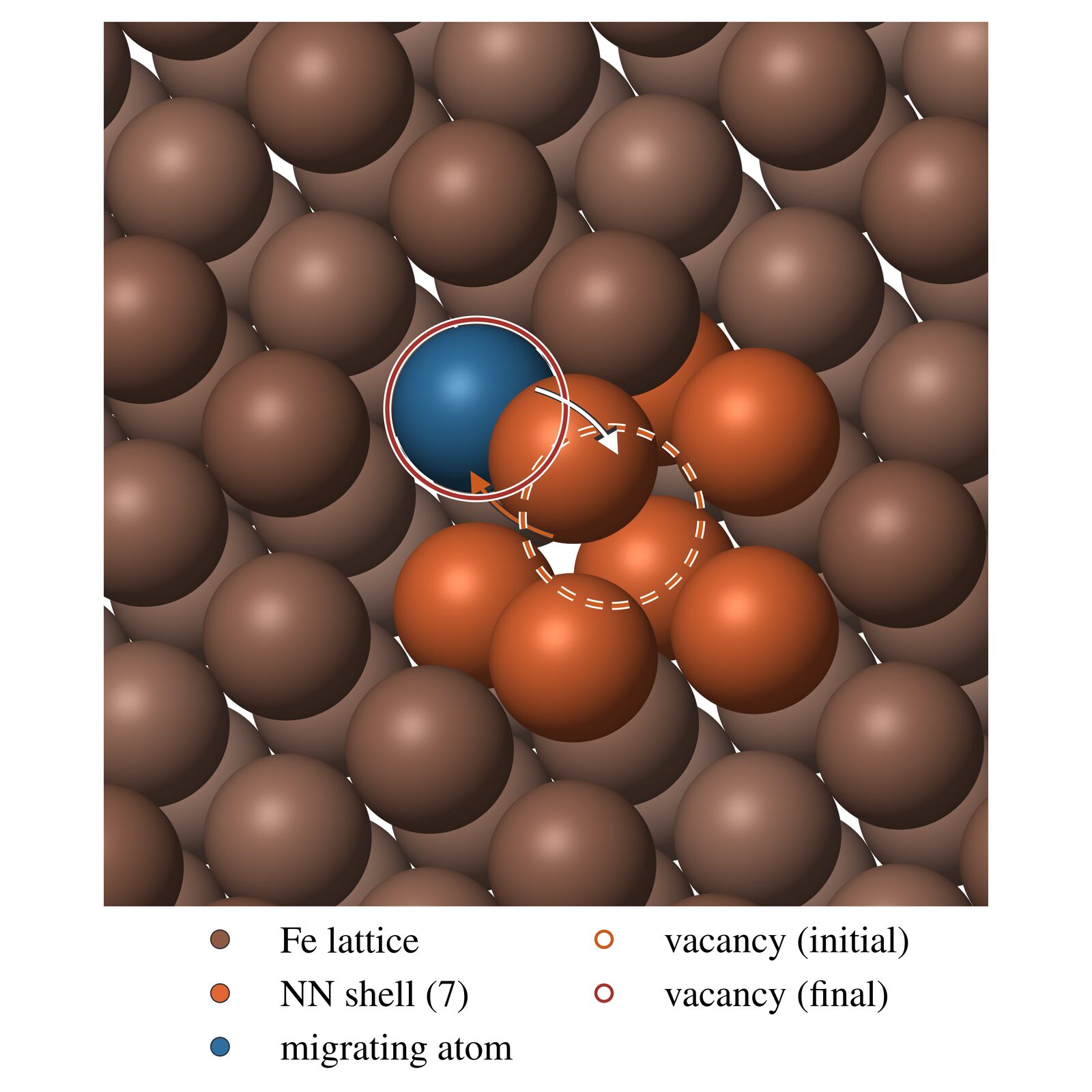

One site is empty in a 7 × 7 × 7 bcc α-Fe supercell of 685 atoms, periodic in every direction, with no atom held fixed. A transition happens when one of the eight nearest neighbors jumps into the vacant site along ⟨111⟩. At 800 K the barrier is about 9.7 kBT.

What we found

At 800 K the rate agrees with brute force to within 2.1%; the committor-only estimate is about 44% too low. The barrier was too high to train on directly at 800 K, so the network was trained at 1600 K and then refined. Reused without retraining, it stays within 3% of brute force at 700 and 600 K, and at 500 K, where no brute-force result exists, within 2% of the Arrhenius extrapolation of the brute-force rates.

  • 2.1%gap to brute force at 800 K
  • 189×rate drop to 500 K, same network
  • 44%committor-only rate too low at 800 K

Why it matters

Vacancy migration is the elementary process that controls self-diffusion and solute transport in bcc metals.

One network, four temperatures

Trained at 800 K and reused unchanged at 700, 600 and 500 K.

  1. 800 K Trained here 2.1% from brute force
  2. 700 K Reused within 3% of brute force
  3. 600 K Reused within 3% of brute force
  4. 500 K Reused no brute force; within 2% of the Arrhenius extrapolation

The price of reuse is precision, not accuracy: at the same number of paths, the relative uncertainty grows from 0.8% at 800 K to 3.5% at 500 K.

Reuse across temperature

Trained once, reused colder

Each materials network was trained at the top of its temperature range (for Fe, after an initial training stage at 1600 K) and then reused, unchanged, at the lower temperatures. With the path weights, the importance-sampled rates (red) follow the brute-force line. The committor-only estimate (gray) changes far too slowly with temperature; for Pt its error even changes sign.

Pt adatom · trained at 1000 K

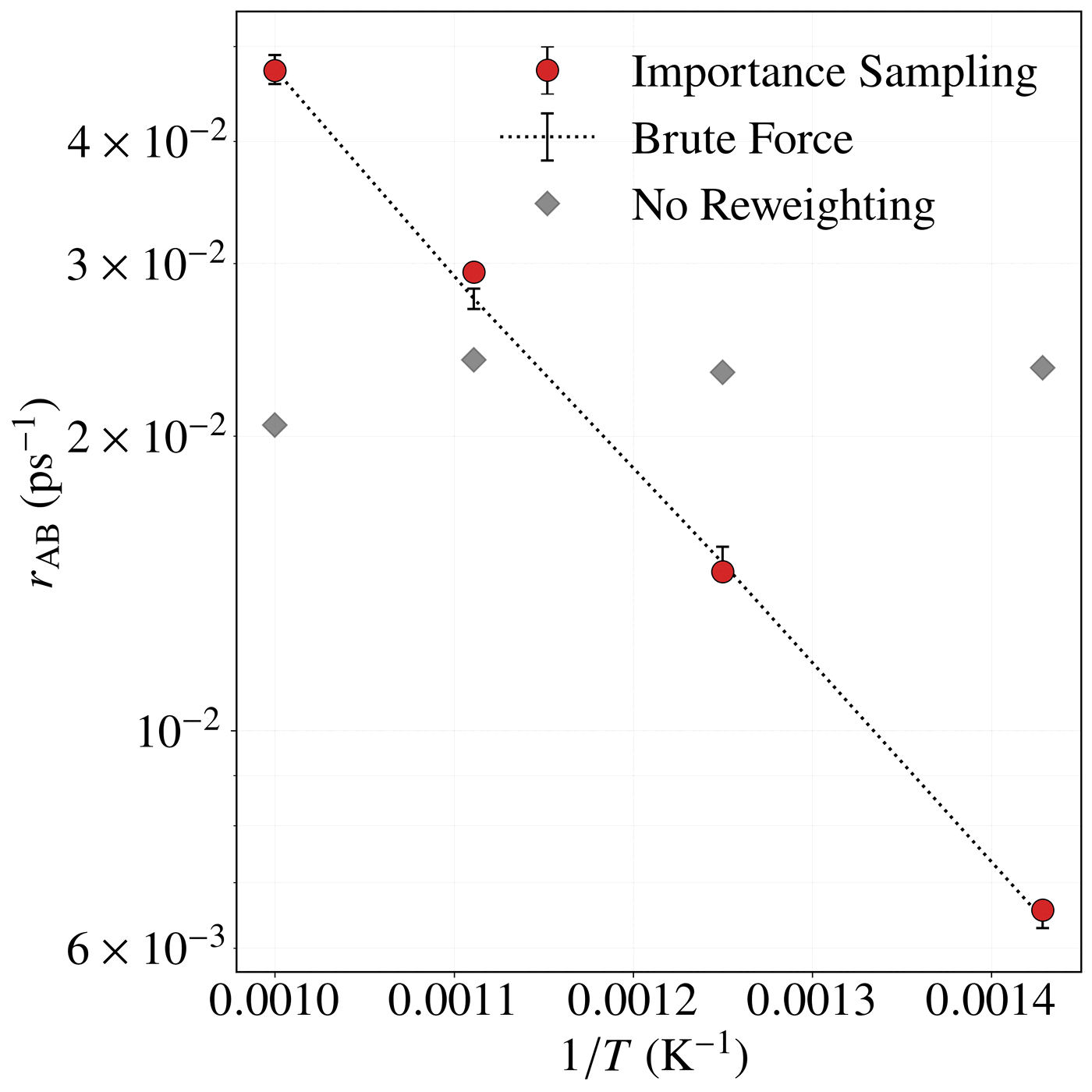

Arrhenius plot for the Pt adatom: red importance-sampling points on the brute-force line from 1000 to 700 K, gray committor-only points nearly flat
Red: importance sampling (s.e.m. smaller than the symbols). Dotted line and bars: brute force with 95% confidence intervals. Gray: committor-only estimate (No Sampling; the legend says No Reweighting). The rate falls more than sevenfold from 1000 to 700 K.
Fe vacancy · trained at 800 K

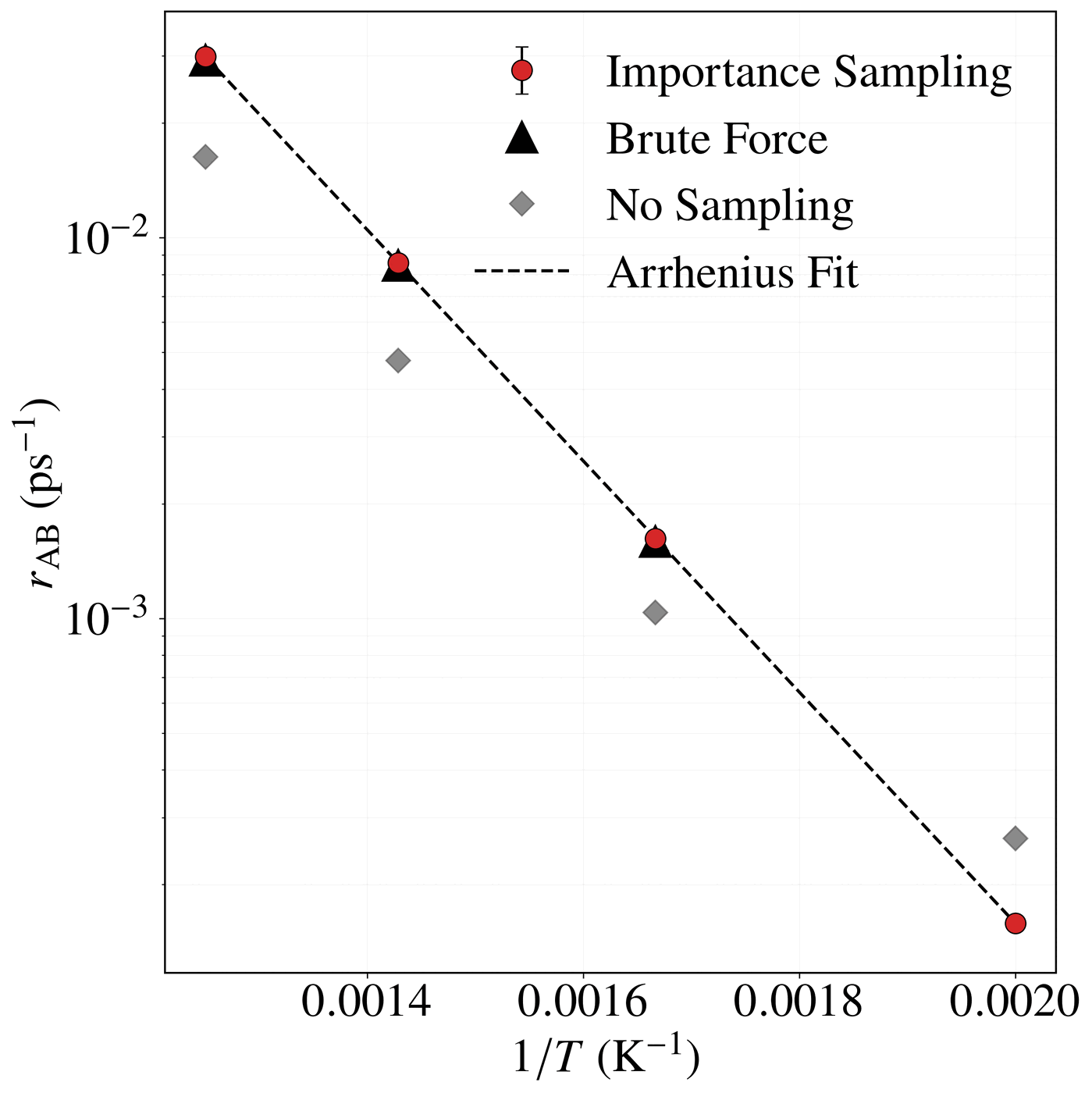

Arrhenius plot for the Fe vacancy: red importance-sampling points on the brute-force triangles and the dashed Arrhenius fit from 800 to 500 K, gray points below and then above
Red: importance sampling (s.e.m. smaller than the symbols). White triangles: brute force, not available at 500 K. Gray: committor-only estimate (No Sampling). Dashed: Arrhenius fit to the brute-force rates, which the 500 K estimate matches to within 2%.
  • >7×drop in the Pt rate from 1000 to 700 K, tracked with no retraining
  • ≤3%gap to brute force for the Fe vacancy from 800 down to 600 K, one network throughout
  • 3.6×committor-only overestimate for Pt at 700 K, after underestimating by more than 2× at 1000 K

All rates here are for overdamped Langevin dynamics with friction γ = 10 ps−1, used for both importance sampling and brute force. Their prefactors differ from those of inertial molecular dynamics, so they are not experimental diffusion rates.

Keep exploring

The methods behind the pictures

Where these results appear. The LJ7 results are in the posted preprint, Kim & Cai, ChemRxiv (2026): PDF · ChemRxiv. The Pt adatom and Fe vacancy results come from a revised manuscript in preparation and are not in the posted version.
